Series-ETR
Features
UHMW Slide Belt ReturnThe conveyor belt returns on UHMW lined bottom covers. A splice protector drags any fugitive material back to the conveyor's tail section.

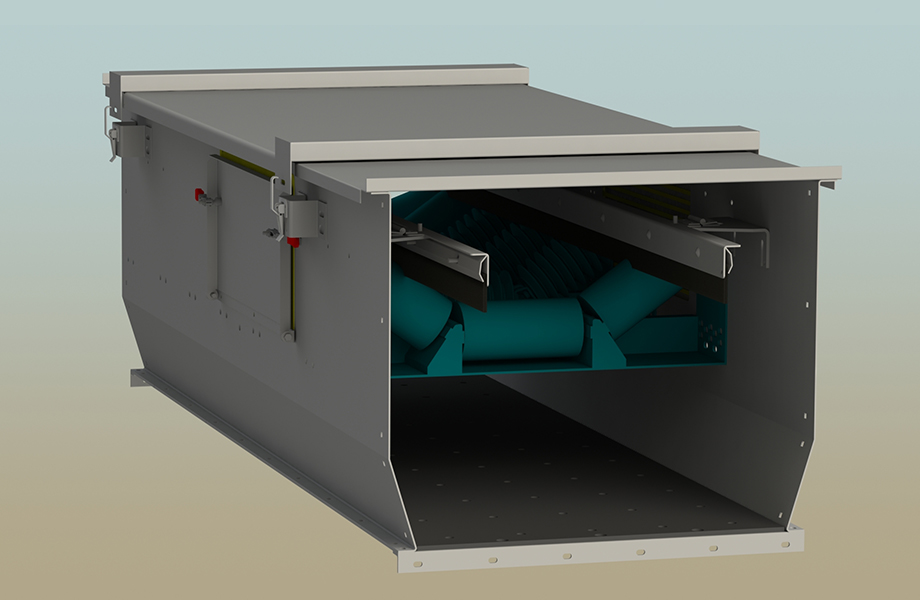

Tool-Less Top CoversTop covers are easily removed by releasing a over-center clamp and removing the hinged splice cover.

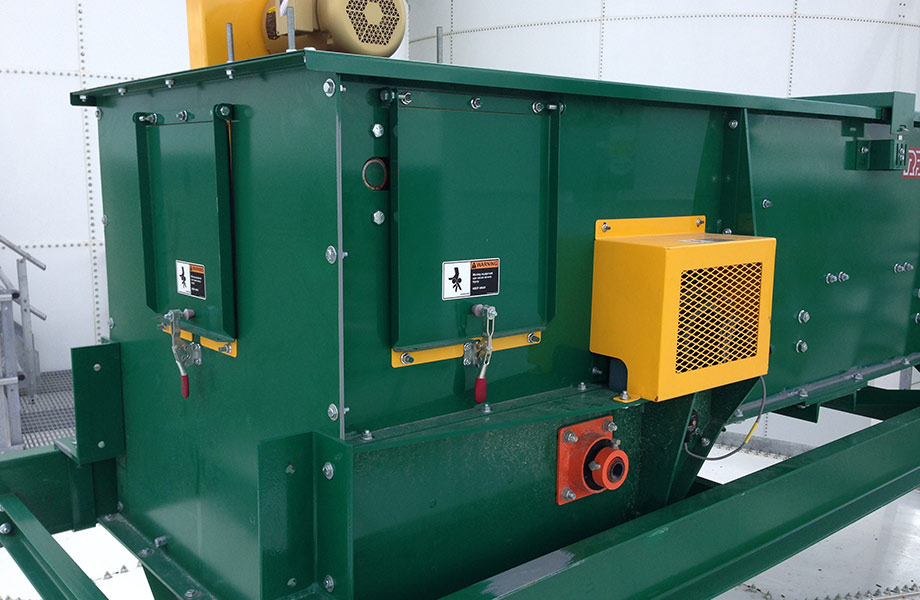

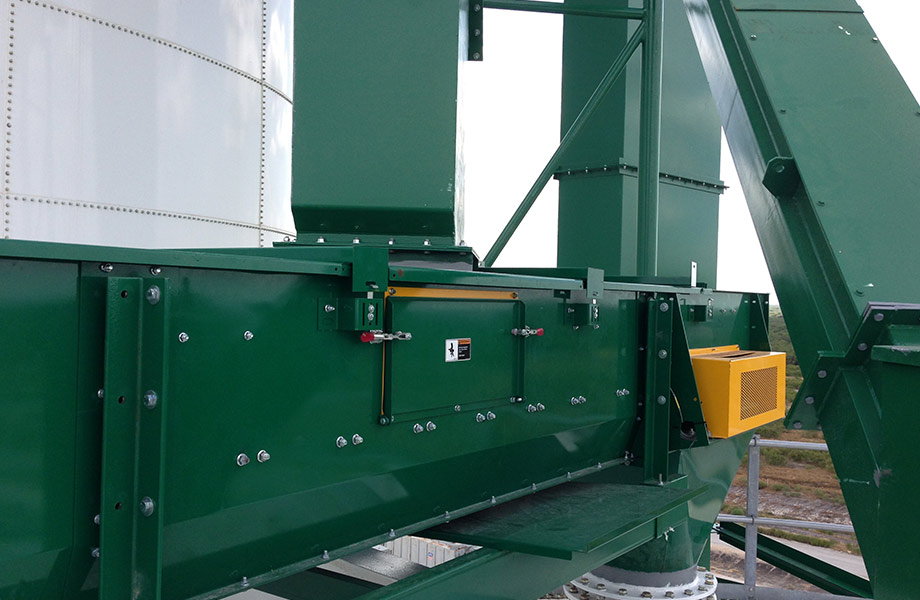

Inspection DoorsDoors used to monitor operating conditions and provide access for maintenance.
Off-The-Shelf CEMA Standard Pulleys and IdlersThese components are readily available for quick replacement.
Heavy-Duty Industrial Grade Bearings, Drives and Motors Brands can be of the customer's choice or Rapat will provide our standard offerings.

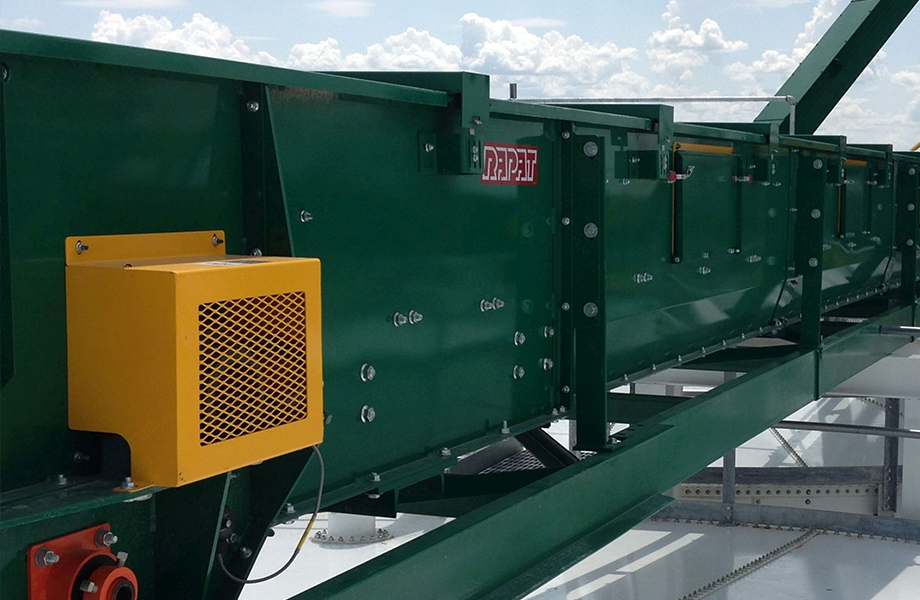

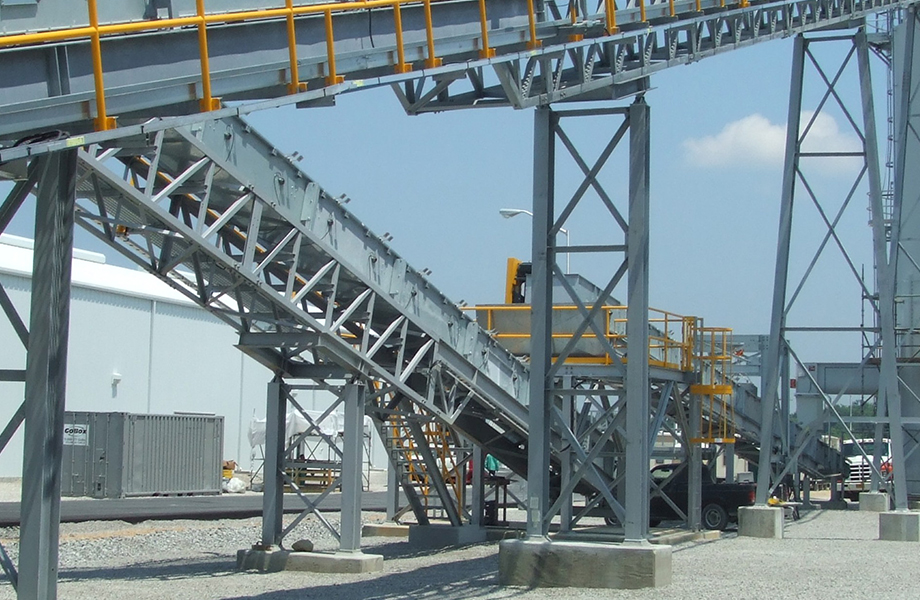

Channel Support TrussA structural channel support truss can be used to support the Series-ETR when shorter spans are required between support locations.

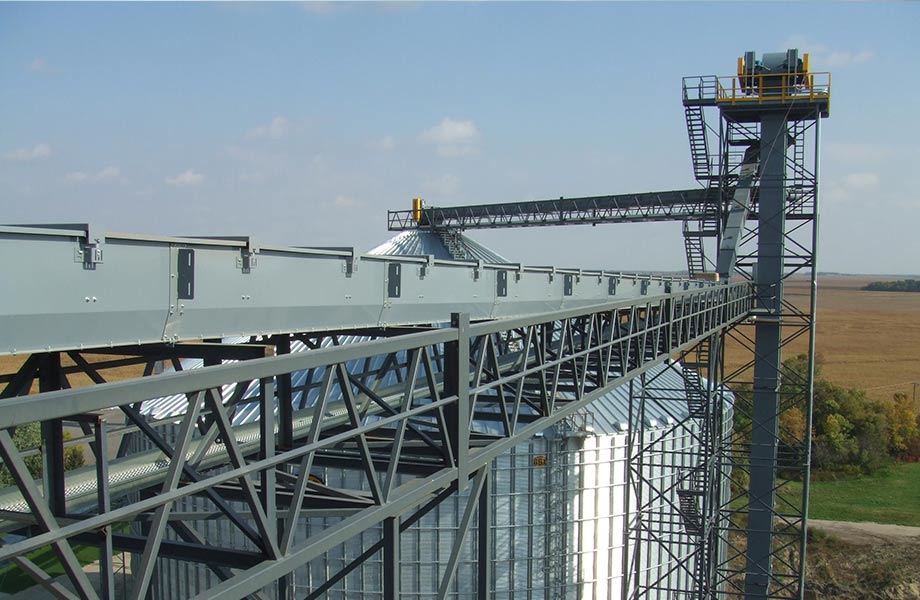

W-Beam Support TrussA structural w-beam support truss designed to span between support locations and meet site loading requirements. Walkway(s) can be supported from the truss, as required.

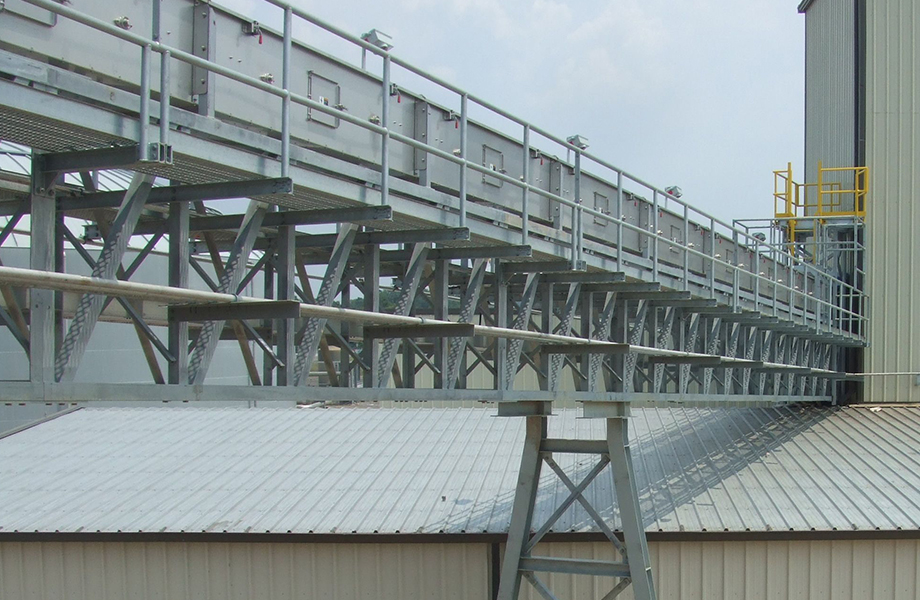

Box Support TrussA welded structural steel boxed-shaped support truss designed to span between support locations and meet site loading requirements. Walkway(s) can be supported from the truss, as required.

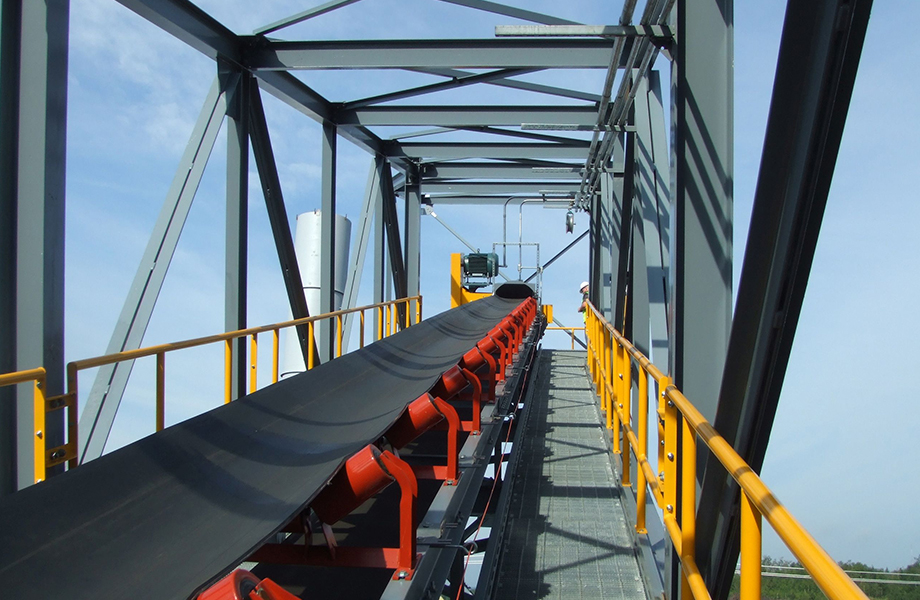

Gallery Support TrussA square, welded structural steel support truss that a belt conveyor and any optional walkway(s) can sit within. These are also designed to span between ground support locations and can be enclosed with sheeting or left open.

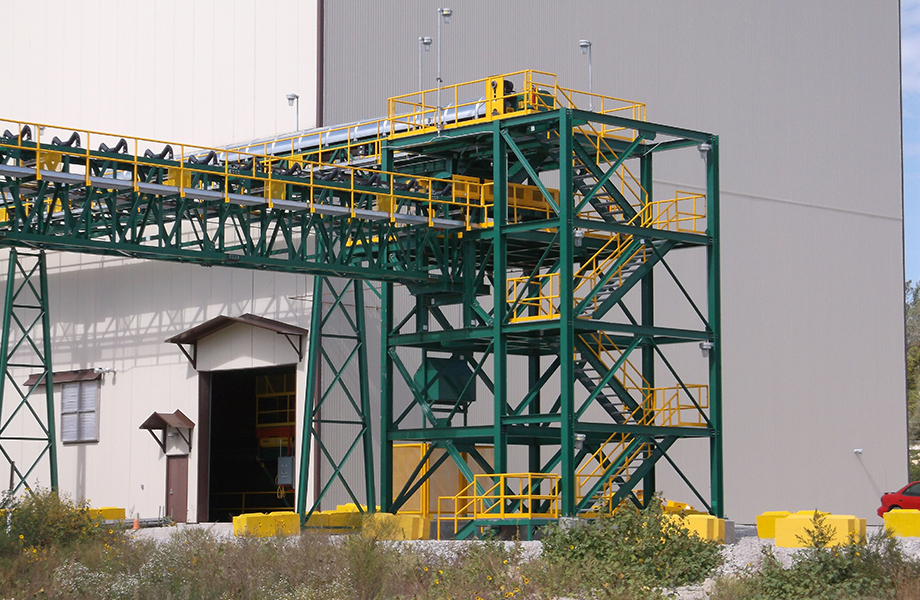

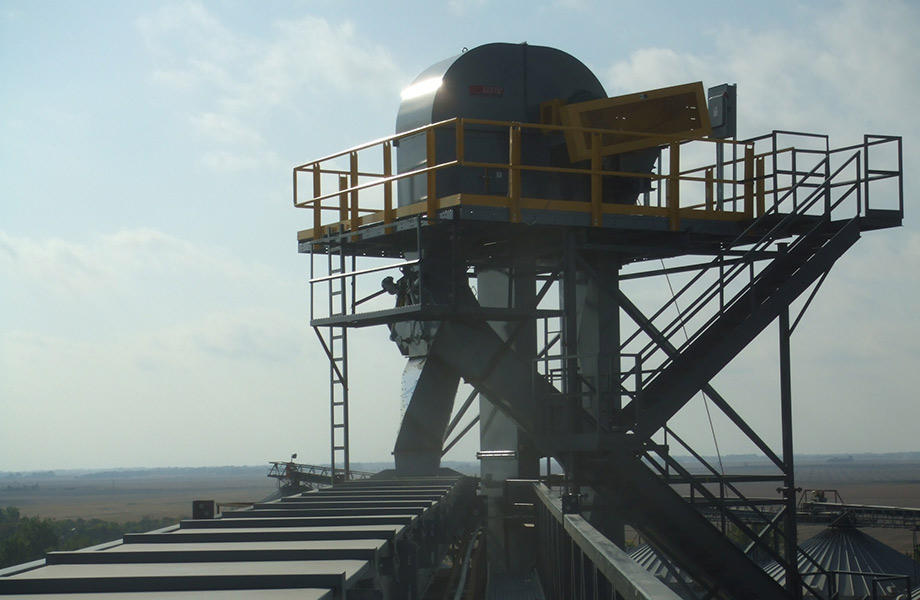

Transfer TowersA structural steel support tower where one conveyor transitions and feeds into another. These are designed for each application and can include stairways, handrails and platforms.

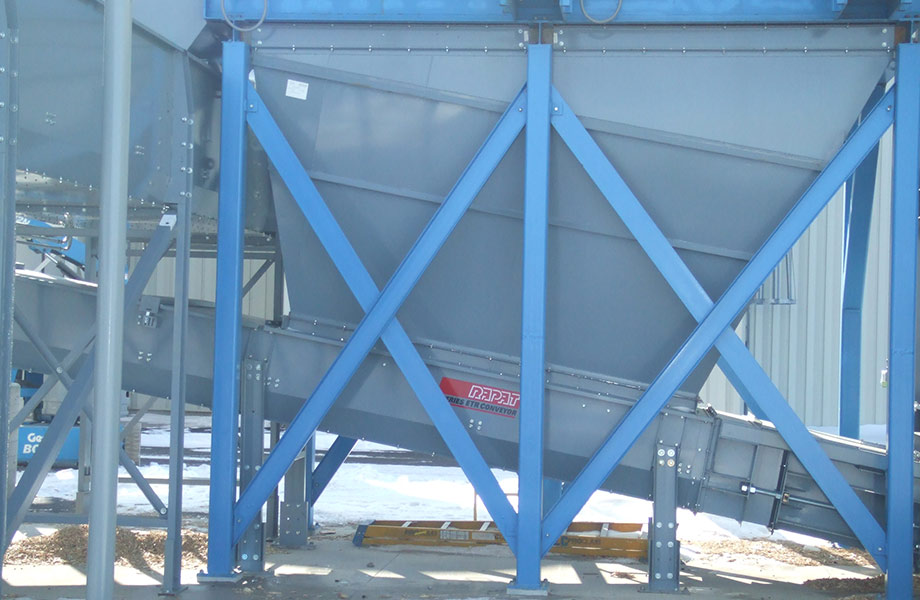

Support BentsA structural steel support frame designed and fabricated to support a conveyor at an elevation and meet the site specific loading requirements.

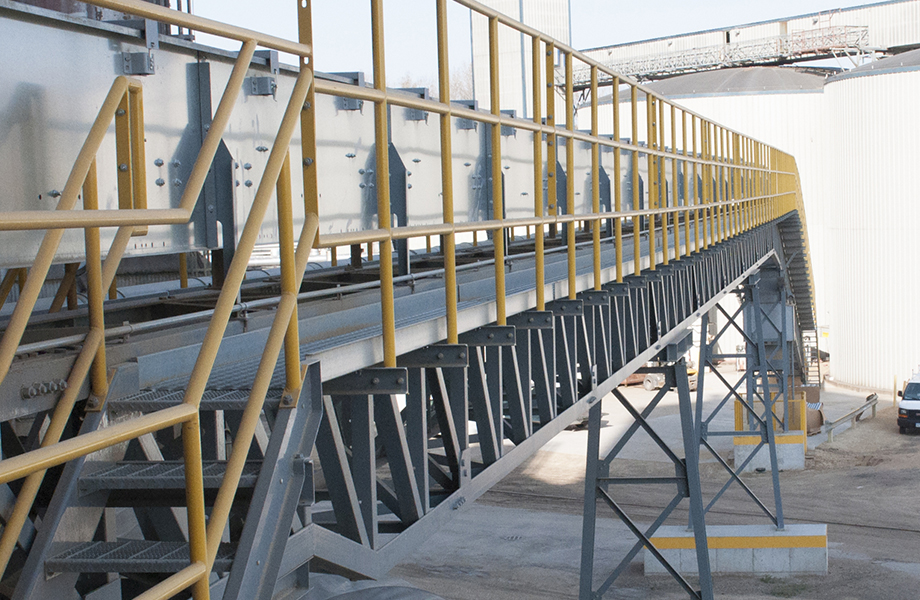

WalkwaysA platform with a safety handrail that is supported off the side of a conveyor from which a person can walk along the length of a conveyor for maintenance and access. These can be on one or both sides of a conveyor.

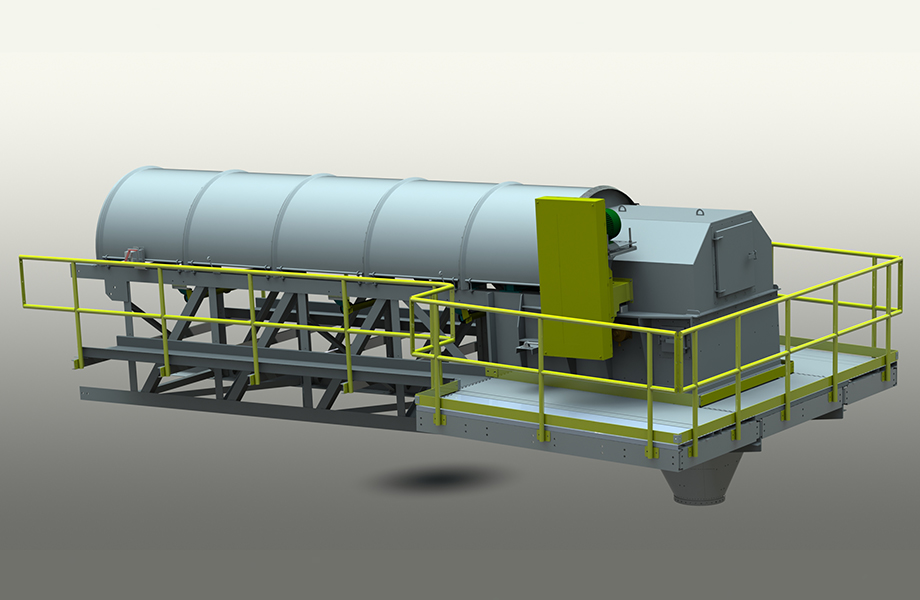

Service PlatformsA platform for safely accessing and maintaining key areas of a conveyor.

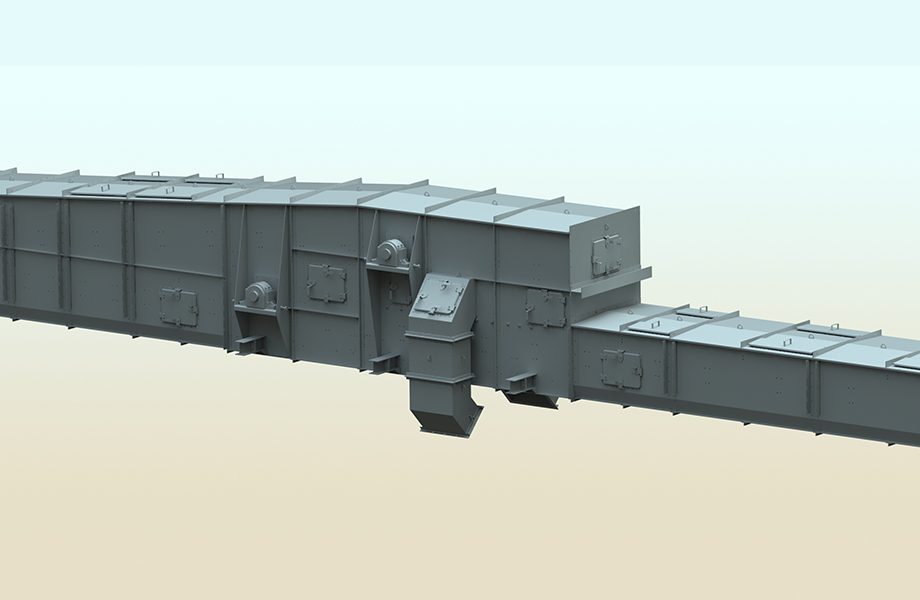

Fixed TripperA device that allows for material to be discharged prior to the end of the conveyor.

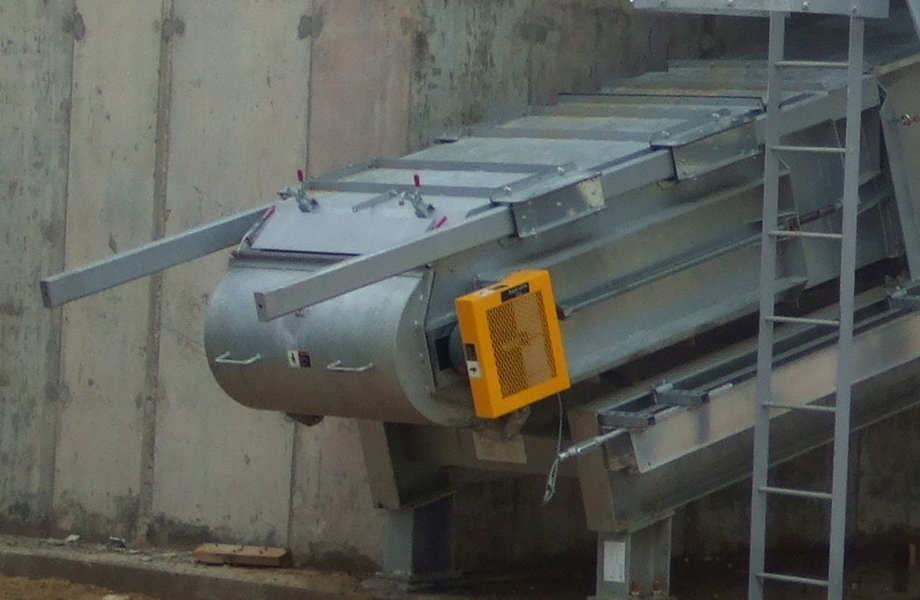

Reloading Tail SectionLightweight, non-abrasive products can be pulled back to the tail section via the Series-ETR UHMW slide belt return and then slung back onto the carry side of the belt.

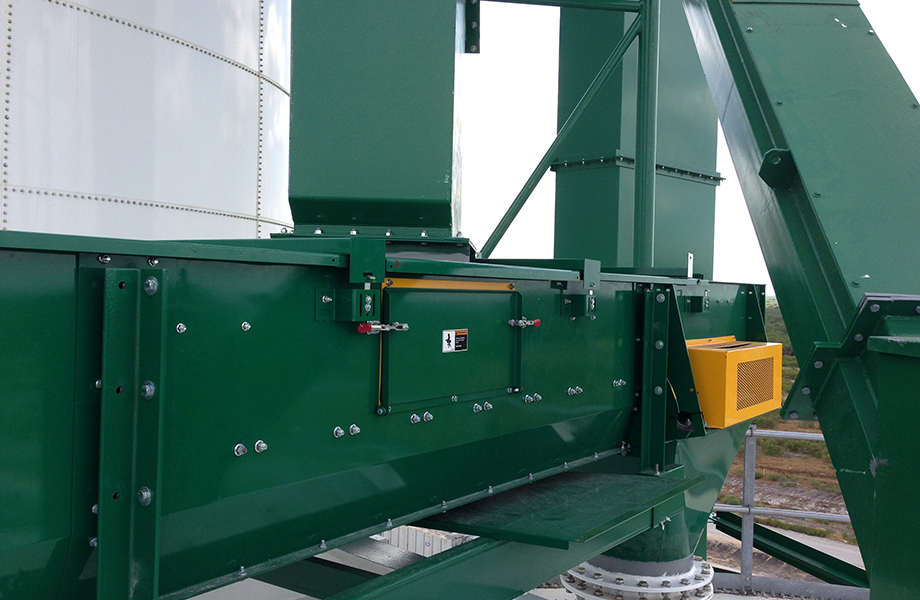

Tail Discharge TransitionHigh-density, abrasive products can be pulled back to the tail section via the Series-ETR UHMW slide belt return spouted away to be redistributed.

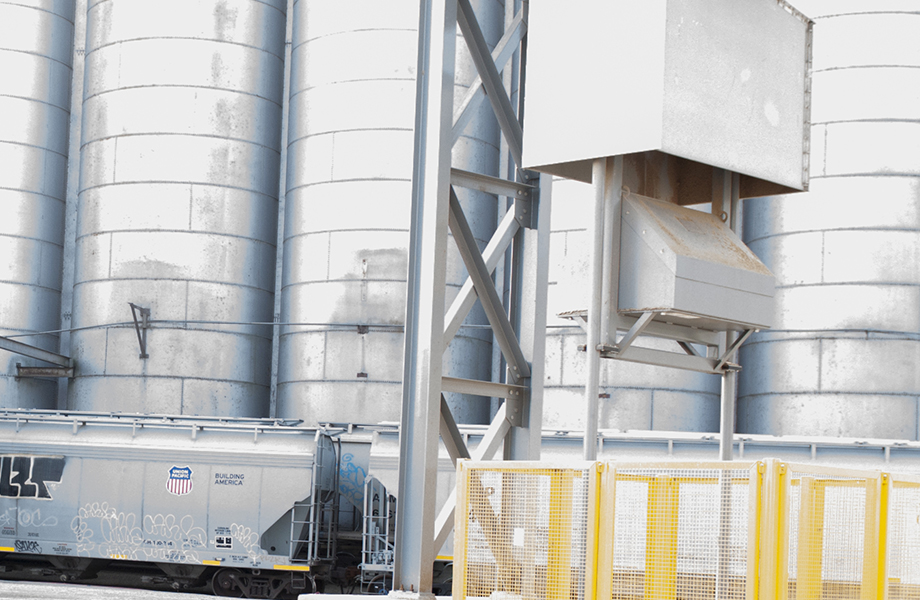

Gravity Take UpsA device that automatically adjusts using a counterweighted pulley to maintain proper tension on the belt. These are generally used on longer conveyors where mechanical take-ups are no longer practical.

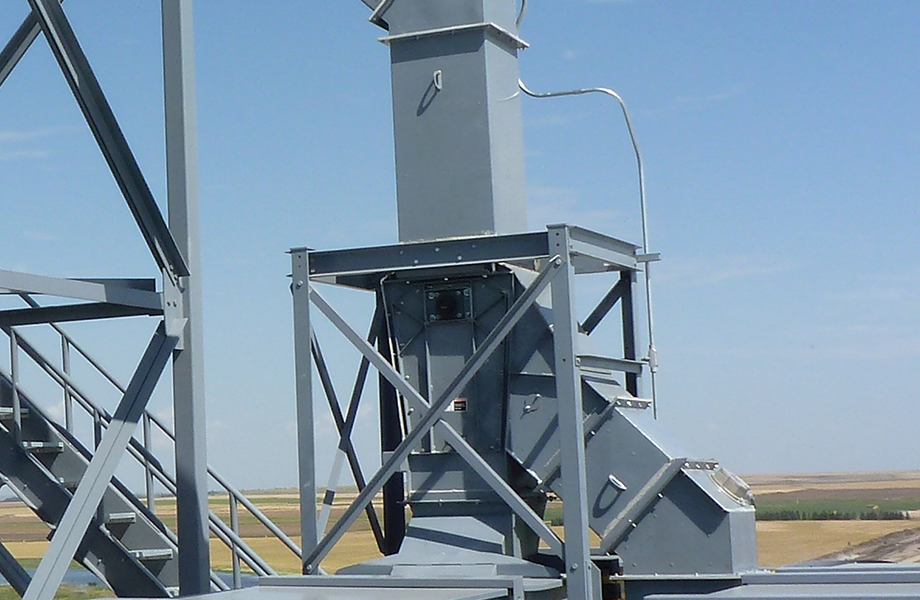

Chutes/Transitions Customized chutes and transitions are designed to move product to and from conveyors to other conveyors and process equipment. These are available with a variety of wear liner options depending on the material being conveyed.

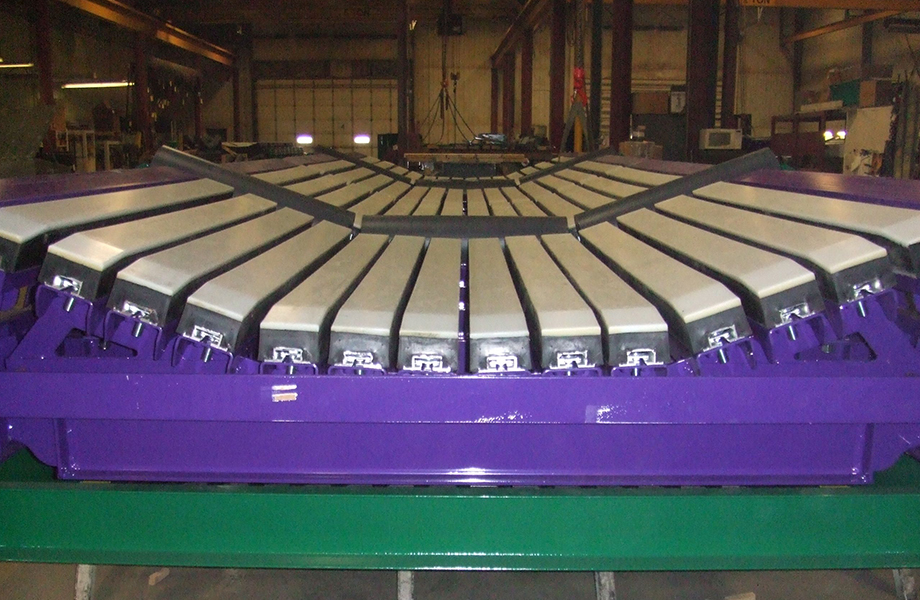

Impact BedsA series of cushioned bars used to absorb loading forces under a conveyor belt in the loading zone. These vary depending on the material being conveyed and the distance of the product being dropped onto the belt.
Mine Duty & Engineered Class Pulleys Mine duty pulleys are heavier duty than standard pulleys for harsh environments. When mine duty pulleys still don’t meet the required belt tensions and durability requirements of an application, pulleys can be engineered to meet those demands.

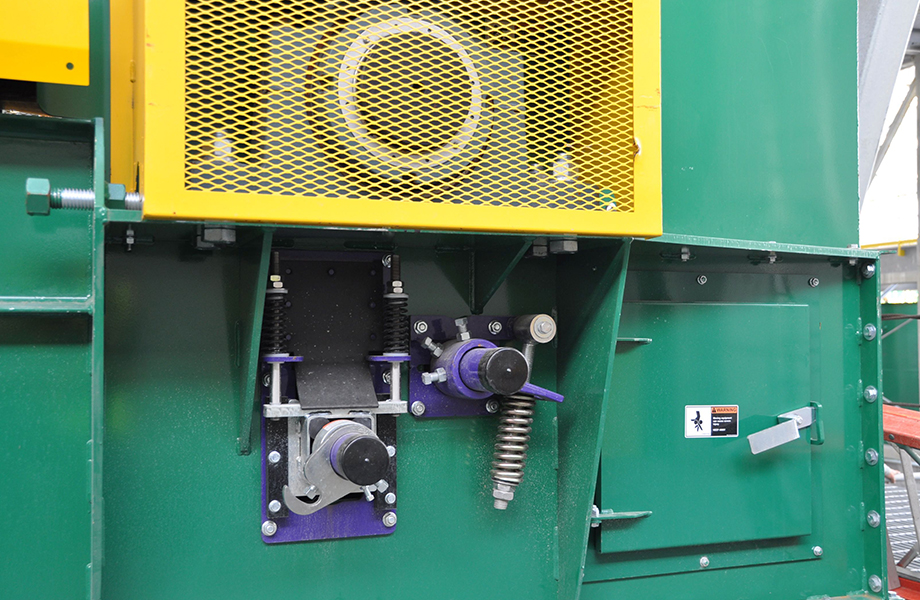

Belt CleanersA device that uses a tensioned blade mounted on a supporting structure to remove material that clings to the belt beyond the normal discharge point. The material, size and tension are determined by the product and its characteristics. These are often mounted inside the discharge hood so product cleaned off belt falls into the discharge.
WashboxA device that uses pressurized water and a series of belt cleaners to clean especially tacky material from a belt.

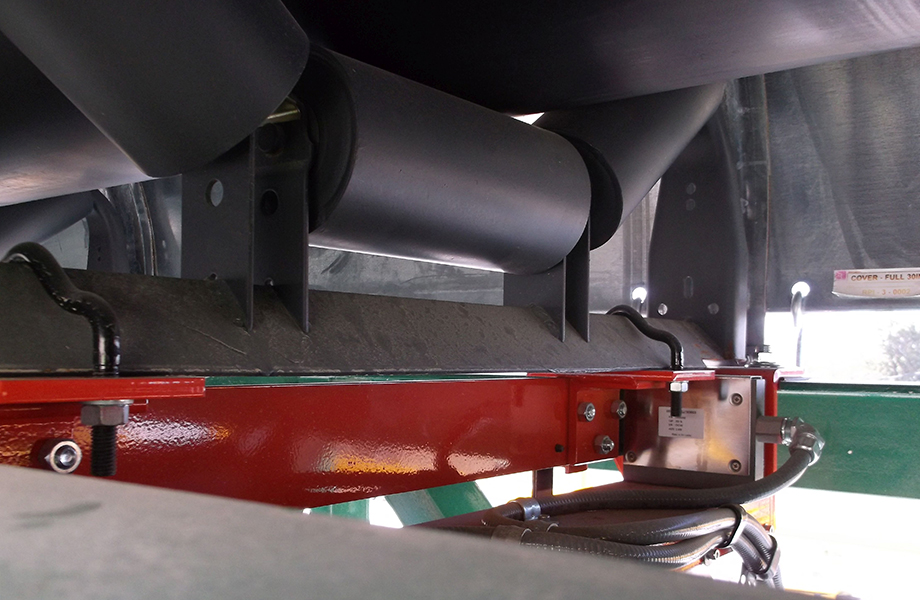

Belt ScaleA devices that weighs or measure the amount of product moved on a belt conveyor. These vary per application and accuracy requirements.

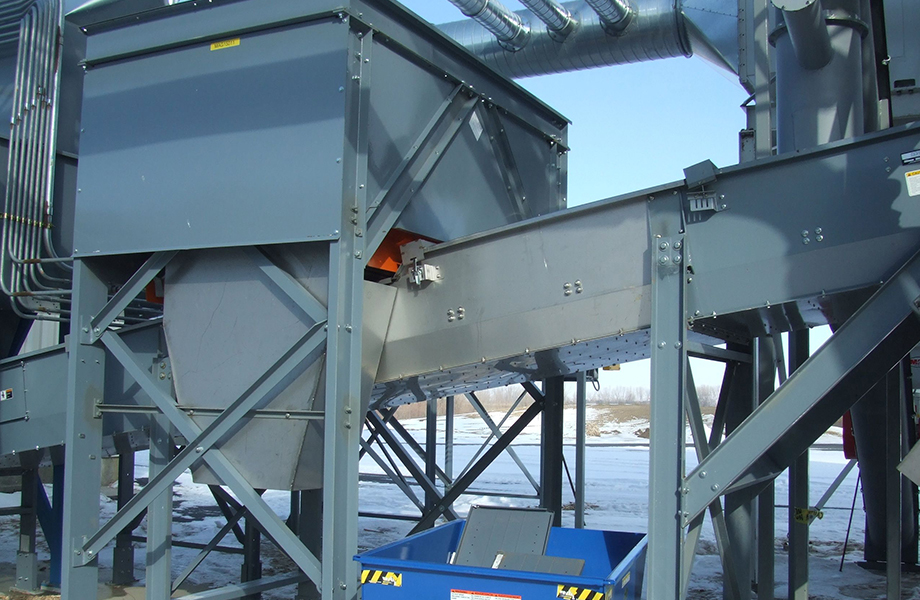

Belt MagnetA device for removing ferrous metals from the product as it moves on a belt conveyor in order to prevent damage to downstream equipment. Size and mounting location vary per application.

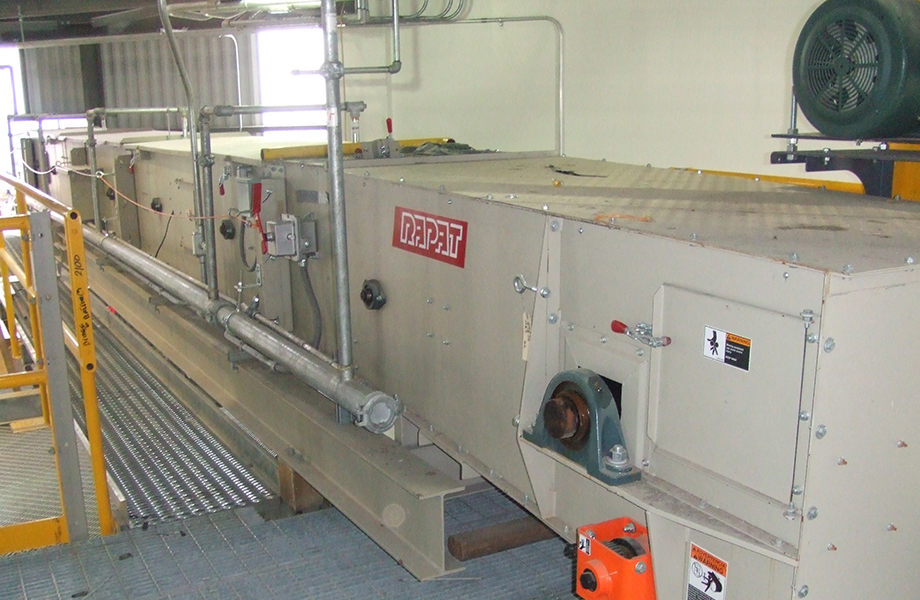

Water Deluge LinesPressurized water lines with diffusers that can be attached to a conveyor to flood the product with water in order to suppress dust and extinguish potential fires. This is a unique option for specific applications.
Grease LinesAllows for greasing bearings from remote locations.
